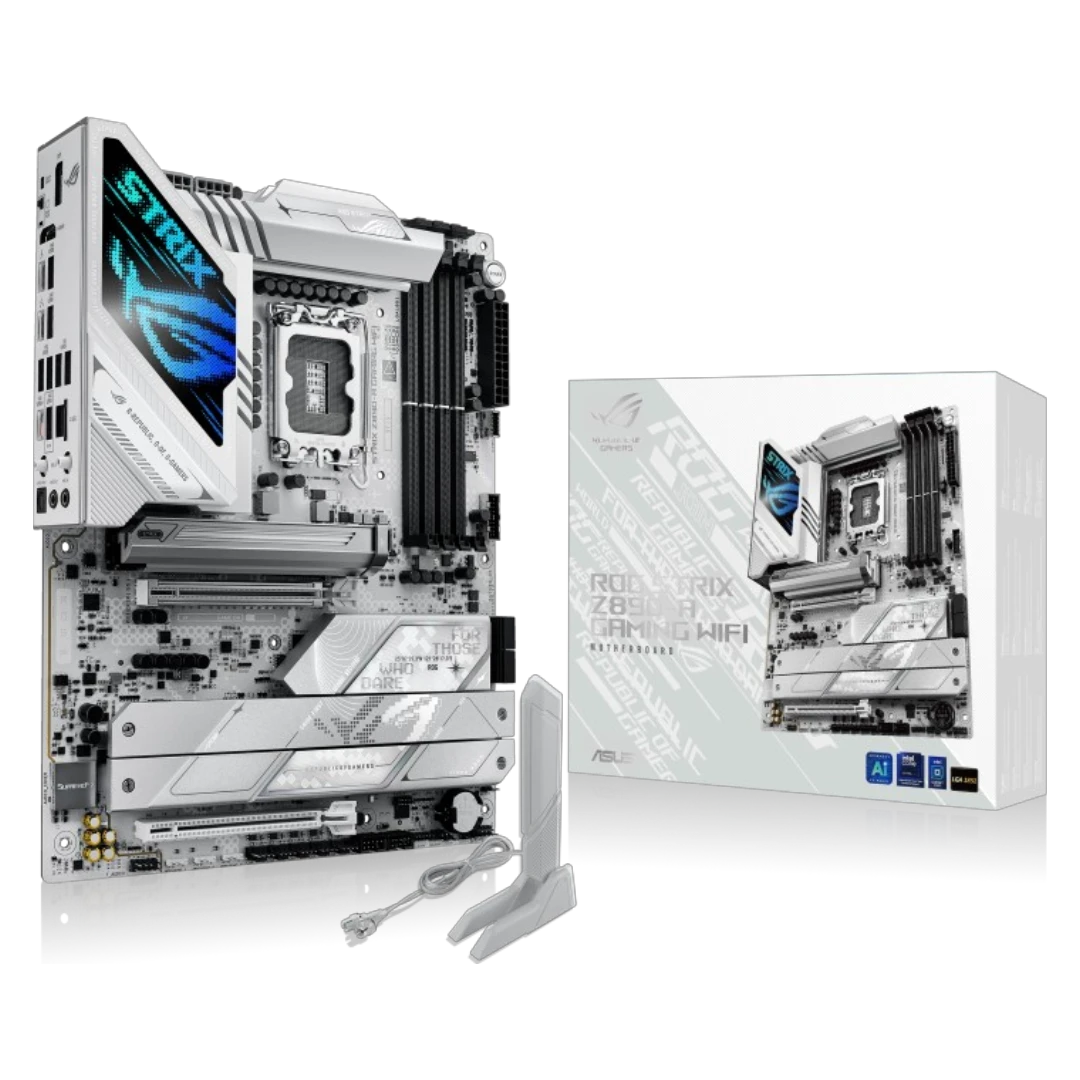

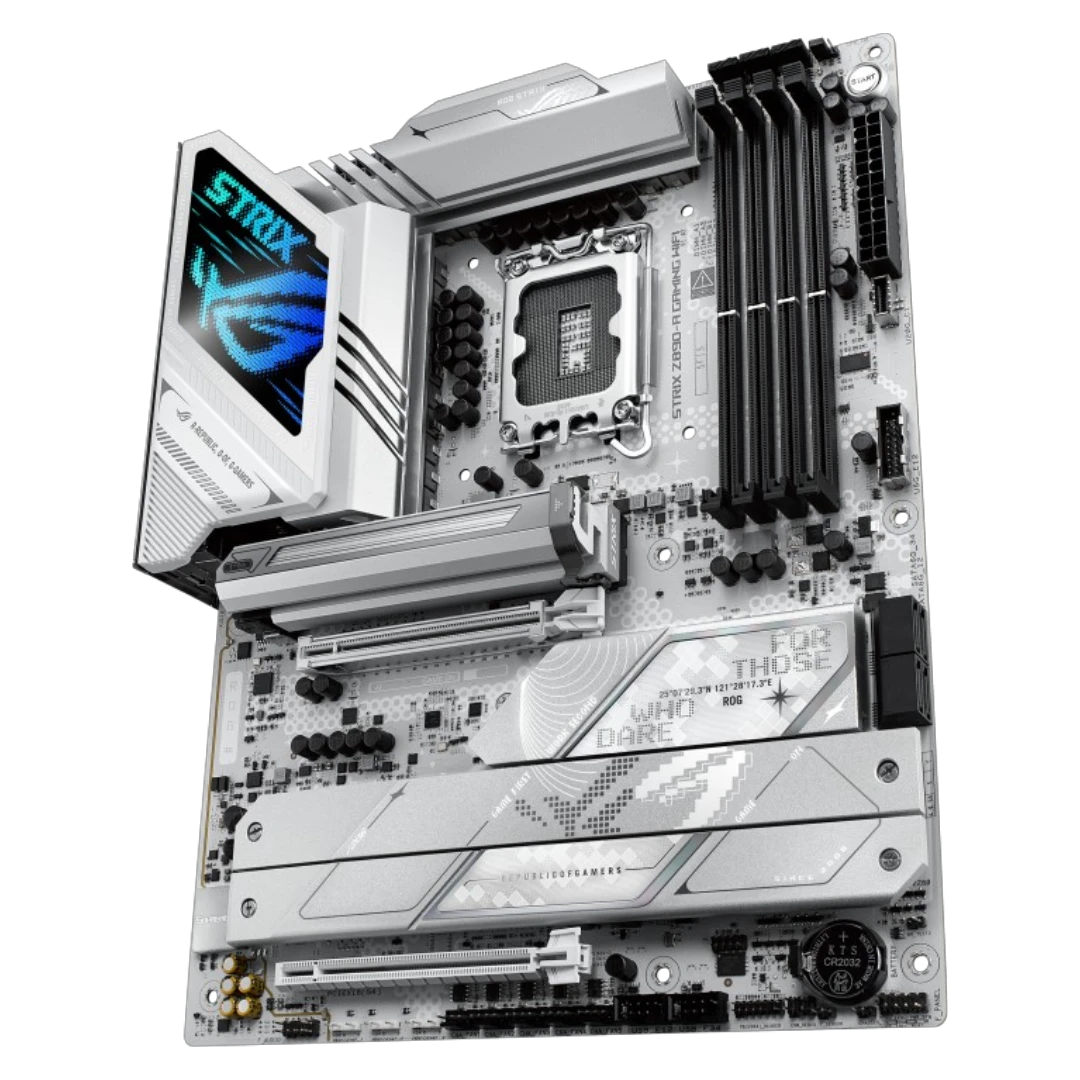

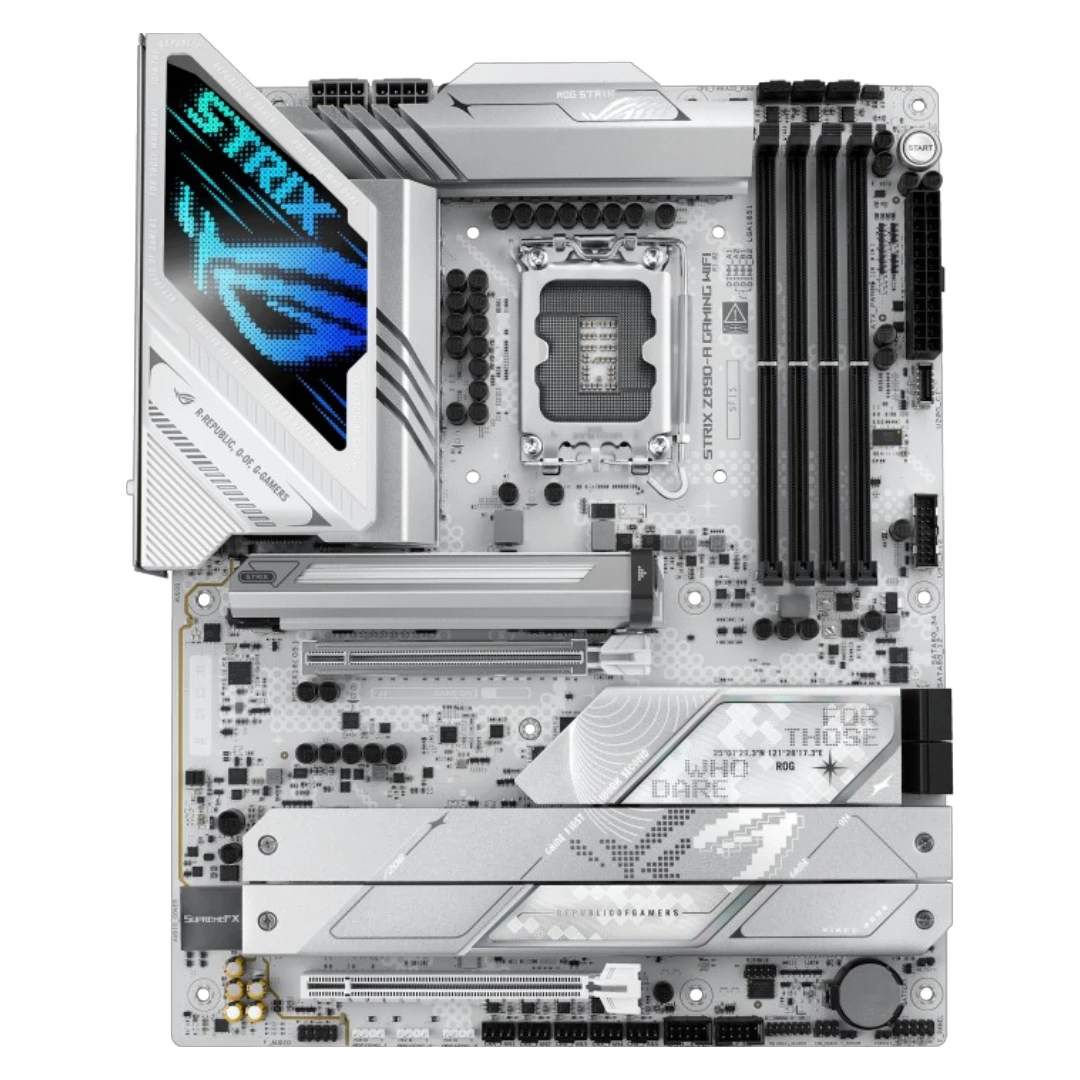

The ASUS ROG STRIX Z890-A GAMING WiFi7 White (ATX, LGA 1851) is a high-performance, all-white ATX motherboard designed for the latest Intel® Core™ Ultra Processors (Series 2) on the LGA1851 socket. Featuring a powerful 16+1+2+2 Power Stage design (90A per stage), it is built to handle heavy overclocking and AI-driven workloads with ease. This "Advanced AI PC-ready" board is at the cutting edge of connectivity, sporting WiFi 7 (up to 5.8Gbps), dual Thunderbolt™ 4 ports, and a PCIe 5.0 x16 slot. With its sleek Polymo lighting and comprehensive DIY-friendly features like PCIe Slot Q-Release and M.2 Q-Latch, it’s a premier choice for elite white-themed enthusiast builds.
Key Specifications at a Glance
| Feature | Specification |
| Socket / Chipset | Intel® LGA1851 / Z890 |
| Power Phase Design | 16(90A)+1(90A)+2(90A)+2(80A) Power Stages |
| RAM Support | 4x DDR5 DIMM (Up to 9066+ MT/s OC, 256GB Max) |
| Expansion Slots | 1x PCIe 5.0 x16 (SafeSlot), 1x PCIe 4.0 x16 (x4 mode) |
| Storage | 1x M.2 Gen5 x4, 4x M.2 Gen4 x4, 4x SATA 6Gb/s |
| Connectivity | WiFi 7 (802.11be), BT 5.4, Intel® 2.5Gb Ethernet |

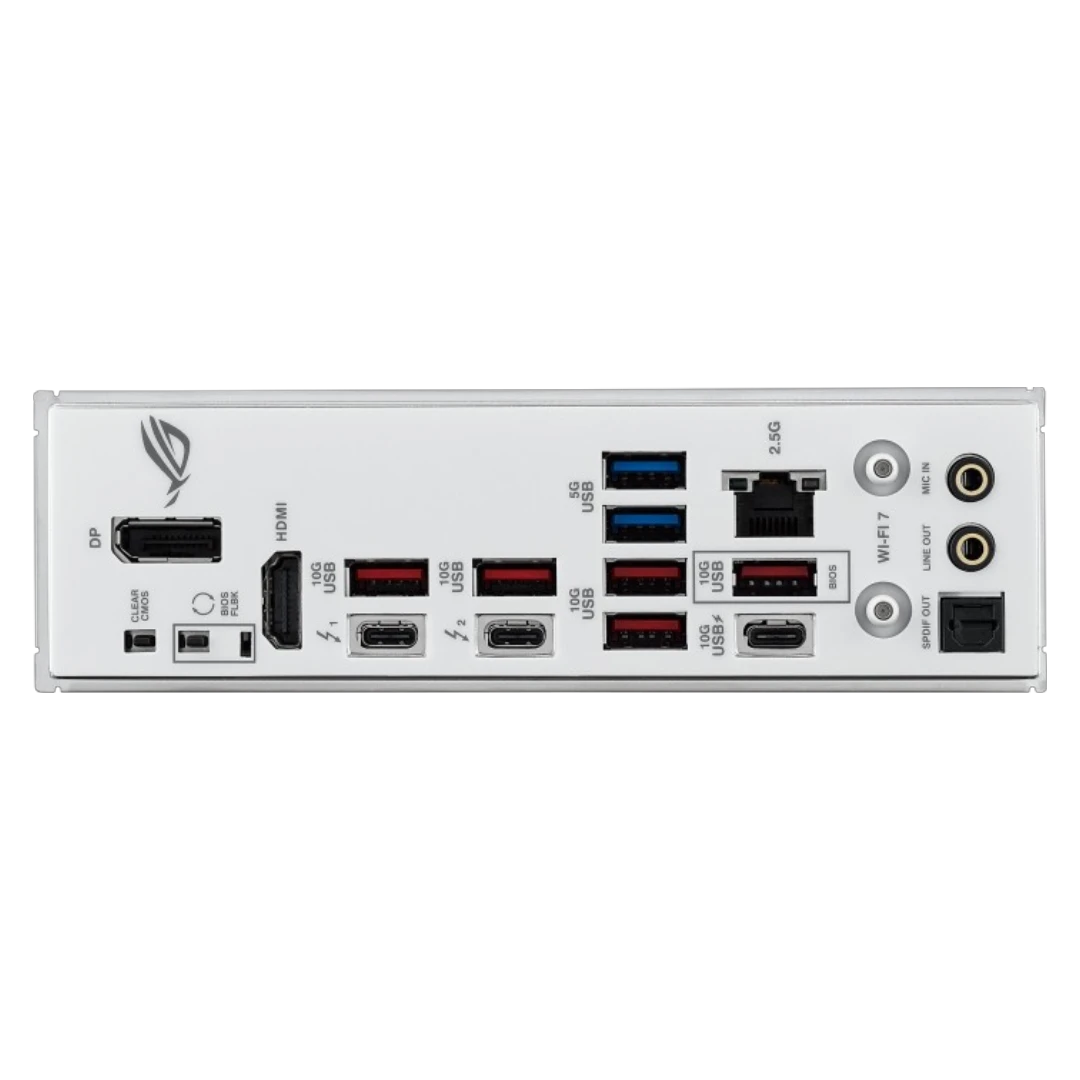

| Rear I/O Ports | 2x Thunderbolt™ 4 (USB-C), 6x USB 10Gbps, 1x 30W PD Fast-charge |
| Video Output | 1x HDMI 2.1, 1x DisplayPort 1.4, 2x Thunderbolt™ 4 |
| Audio | ROG SupremeFX 7.1 (ALC4080 Codec + Savitech SV3H712 Amp) |
| Special Features | NPU Boost, DIMM Flex, Q-Release, BIOS FlashBack™ |
