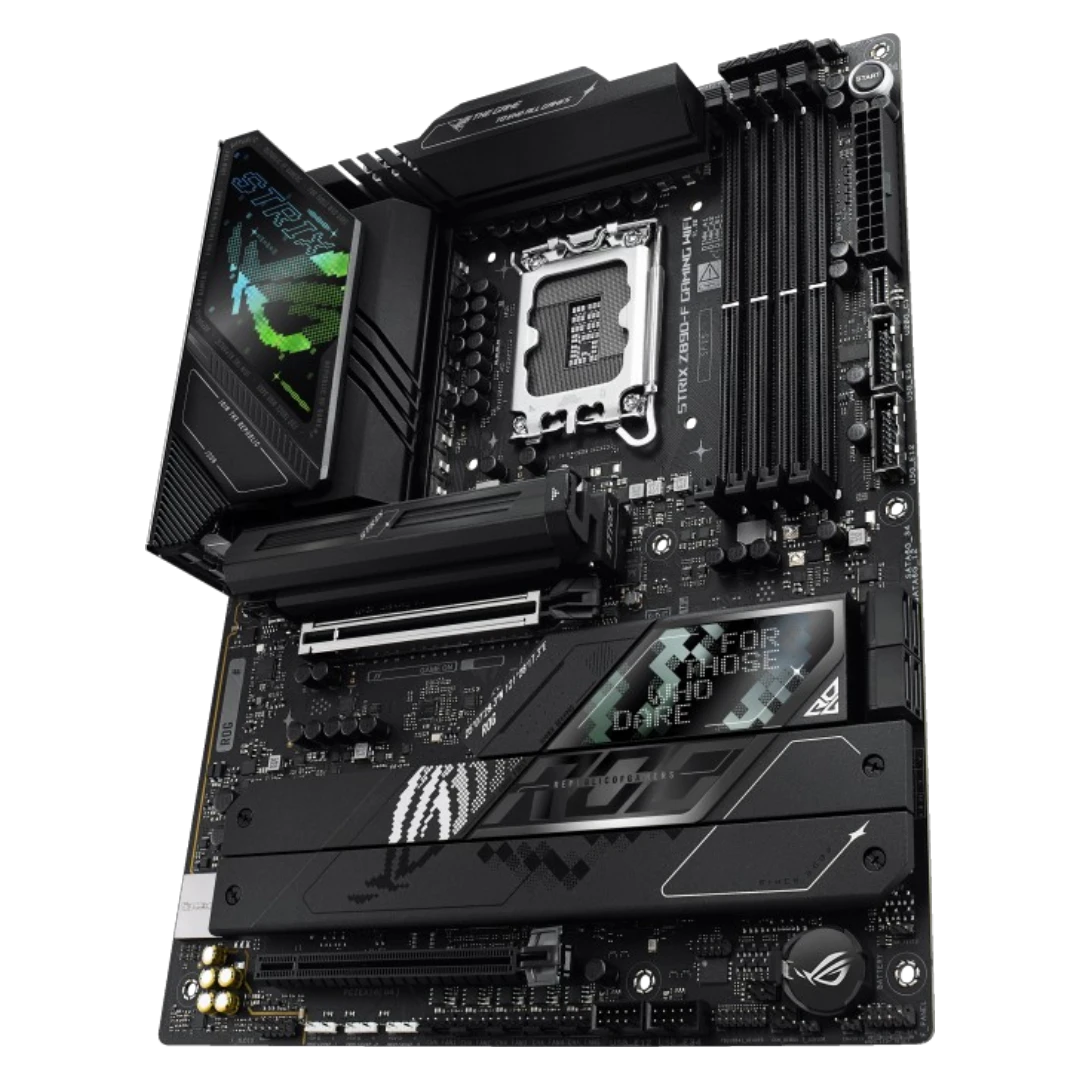

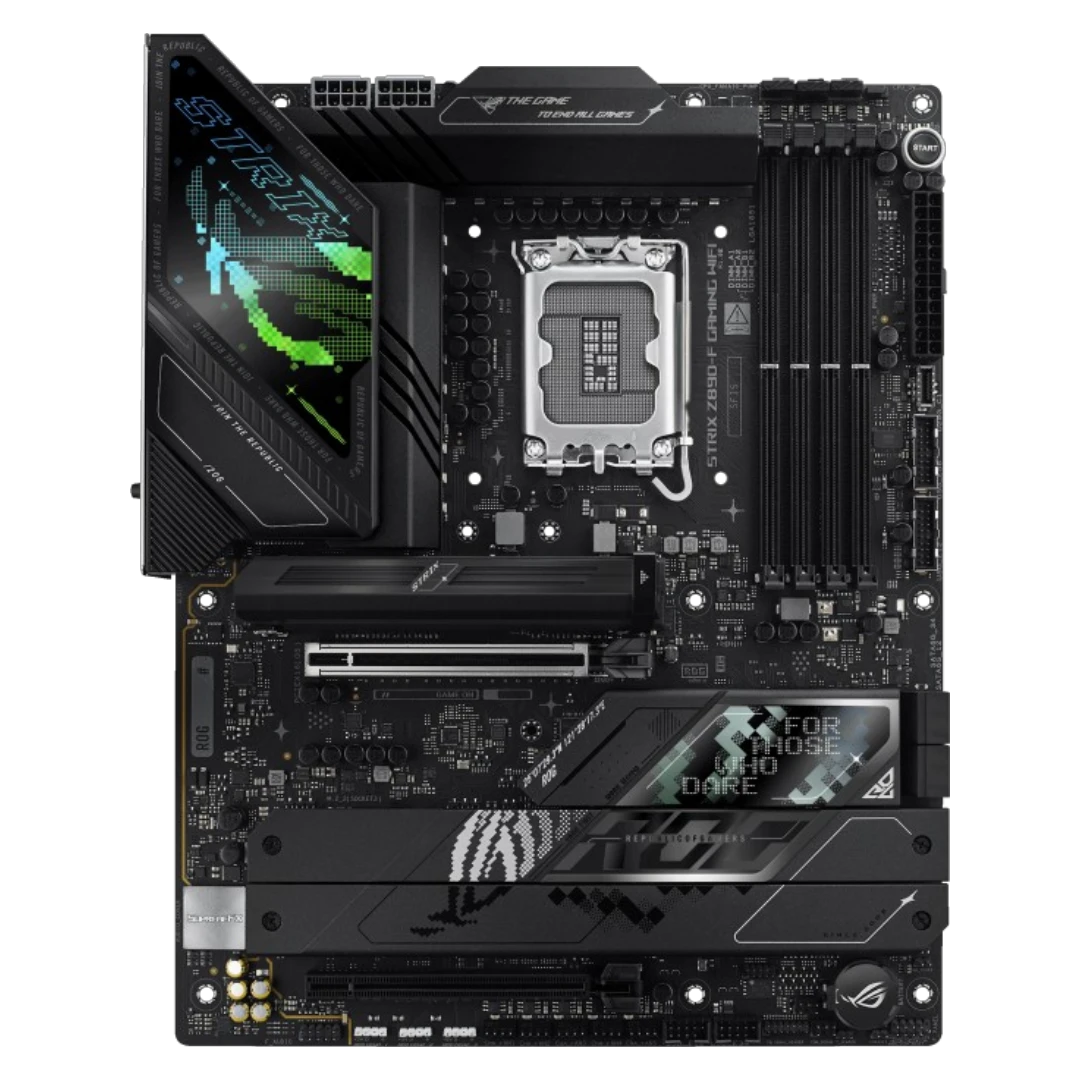

The ASUS ROG STRIX Z890-F GAMING WIFI is a high-performance ATX motherboard designed to unleash the full potential of Intel® Core™ Ultra Processors (Series 2) on the LGA1851 socket. Featuring a powerful 16(110A)+1(90A)+2(90A)+2(80A) Power Stage design, it provides the massive power delivery required for extreme overclocking and advanced AI-accelerated tasks. This "Advanced AI PC-ready" board offers a comprehensive set of "AI Intelligence" features—including AI Overclocking, AI Cooling II, and AI Networking II—to dynamically optimize performance. With ultra-fast Wi-Fi 7, dual Thunderbolt™ 4 ports, and support for high-speed DDR5 (9066+ MT/s OC) using AEMP III, it serves as a future-proof foundation for elite gaming and heavy creative workloads.
Key Specifications at a Glance
| Feature | Specification |
| Socket / Chipset | Intel® LGA1851 / Z890 |
| Power Phase Design | 16+1+2+2 Power Stages (Rated up to 110A per stage) |
| RAM Support | 4x DDR5 DIMM (Up to 9066+ MT/s OC, 256GB Max) |
| Expansion Slots | 1x PCIe 5.0 x16 (SafeSlot), 1x PCIe 4.0 x16 (x4 mode) |
| Storage | 1x M.2 Gen5 x4, 4x M.2 Gen4 x4, 4x SATA 6Gb/s |
| Connectivity | WiFi 7 (802.11be), BT 5.4, Intel® 2.5Gb Ethernet |

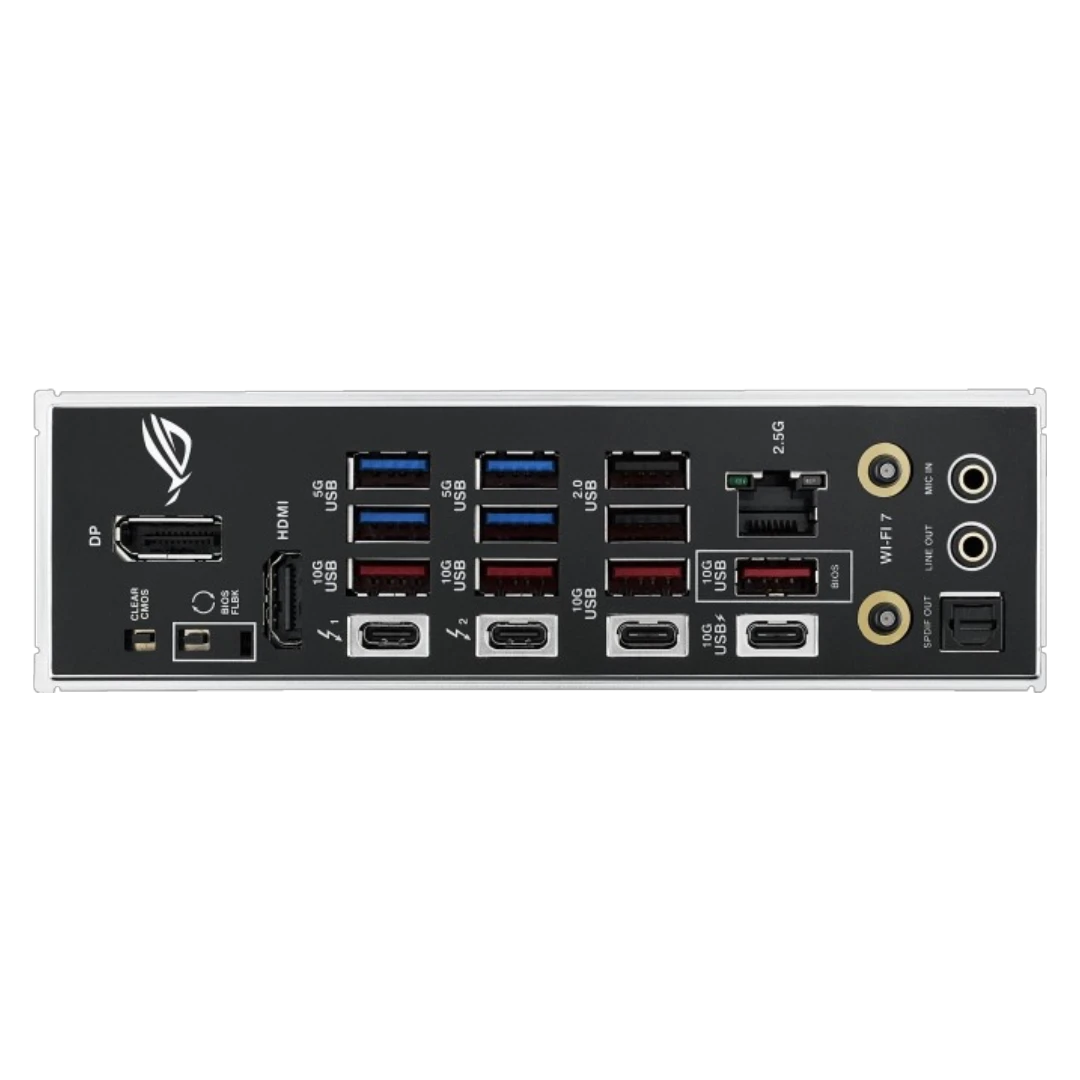

| Rear I/O Ports | 2x Thunderbolt™ 4 (USB-C), 1x USB 10Gbps Type-C (30W PD), 6x USB 10Gbps Type-A |
| Video Output | 1x HDMI 2.1, 1x DisplayPort 1.4, 2x Thunderbolt™ 4 |
| Audio | ROG SupremeFX 7.1 (ALC4080 Codec + Savitech SV3H712 Amp) |
| Special Features | NPU Boost, DIMM Flex, Q-Release Slim, BIOS FlashBack™ |
