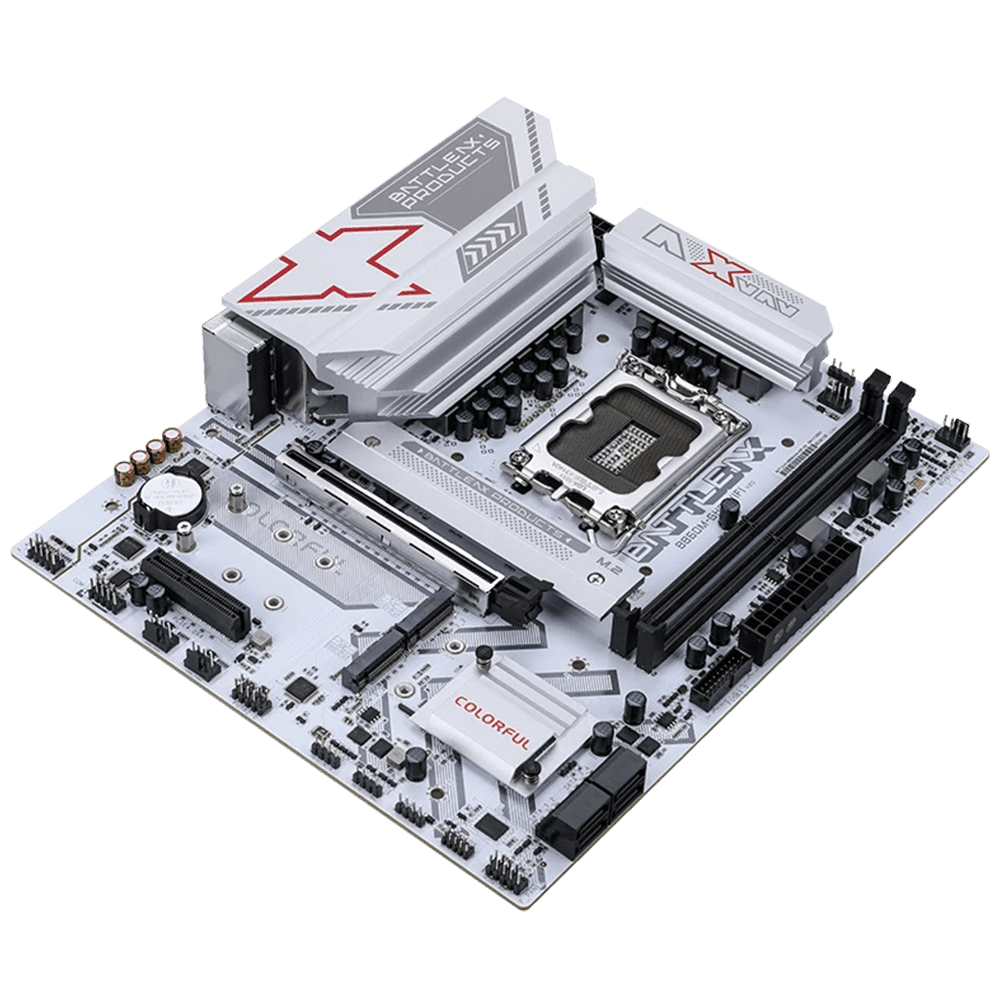

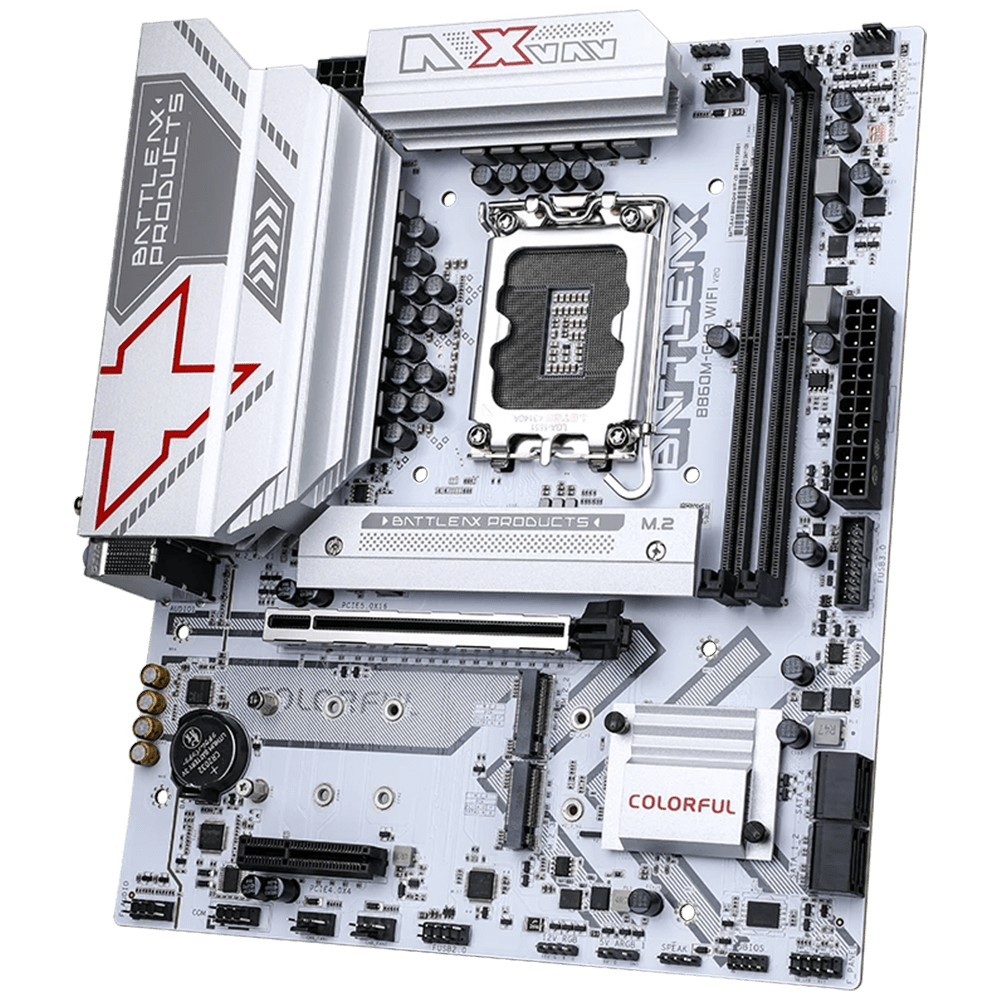

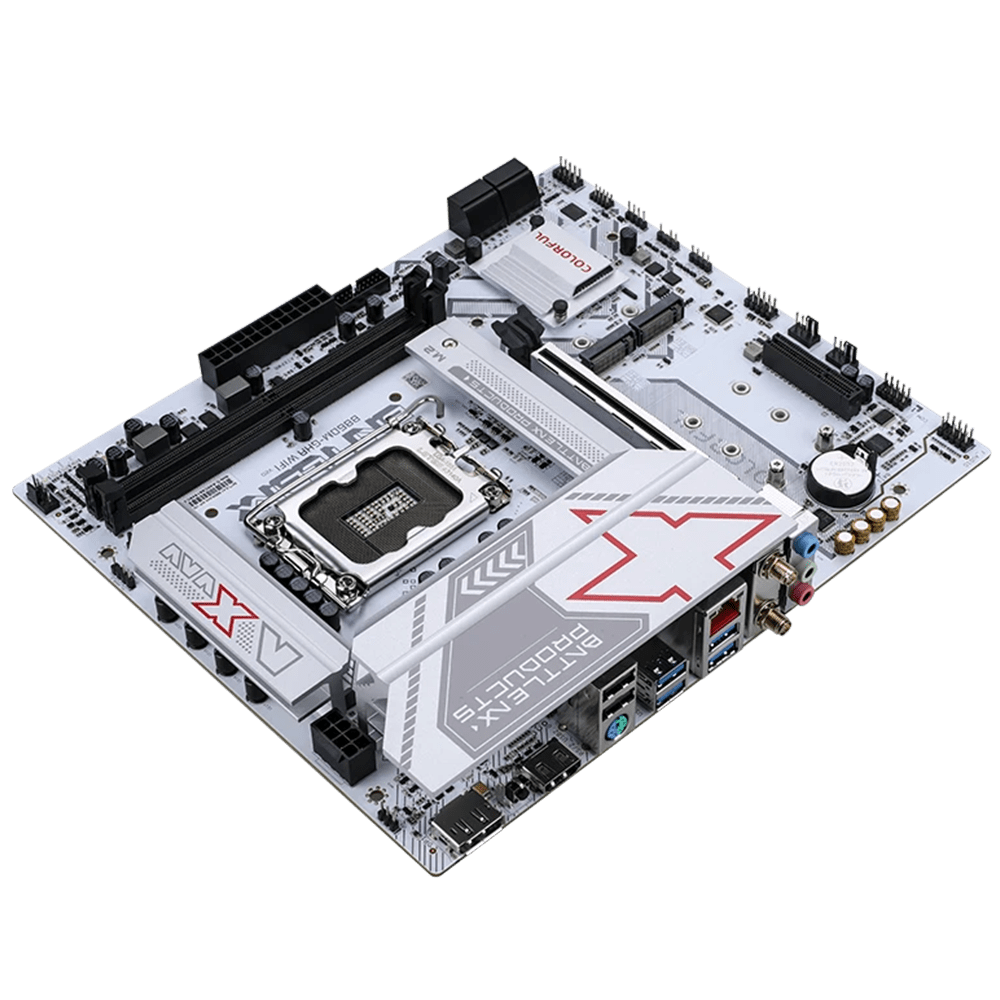

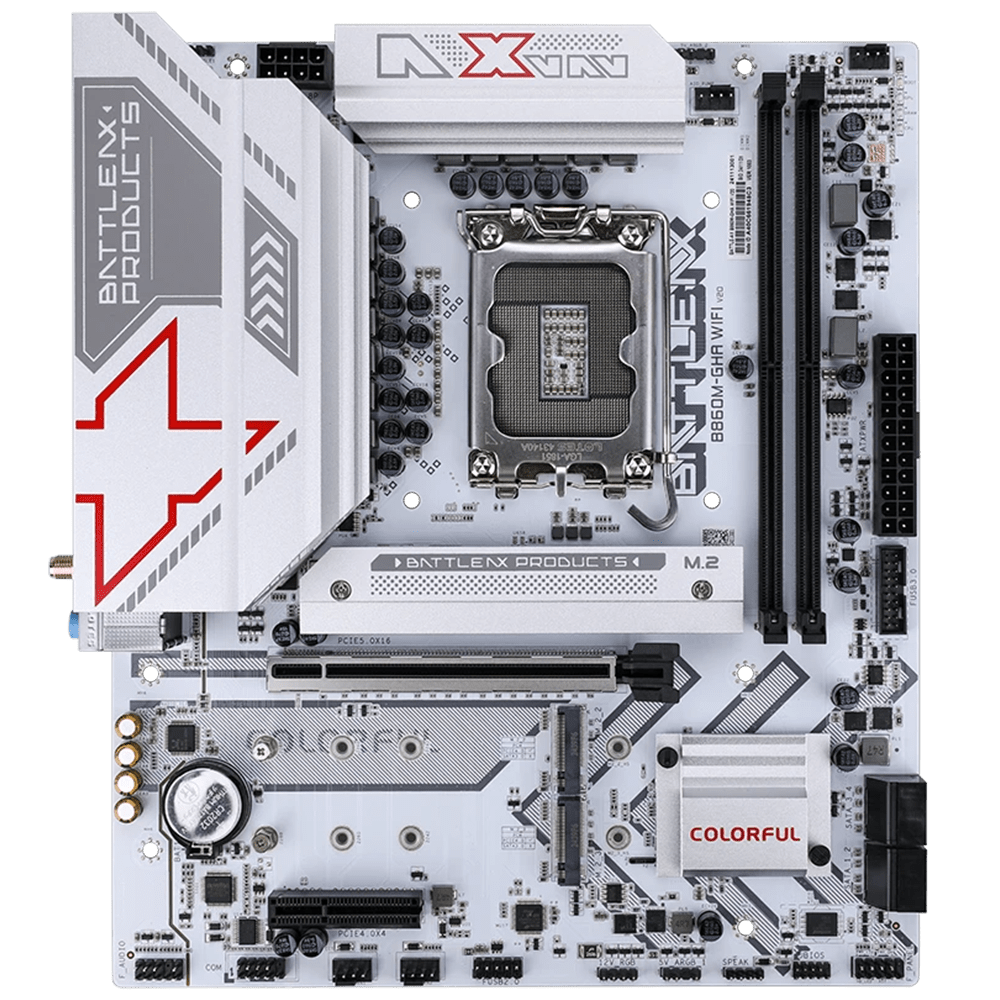

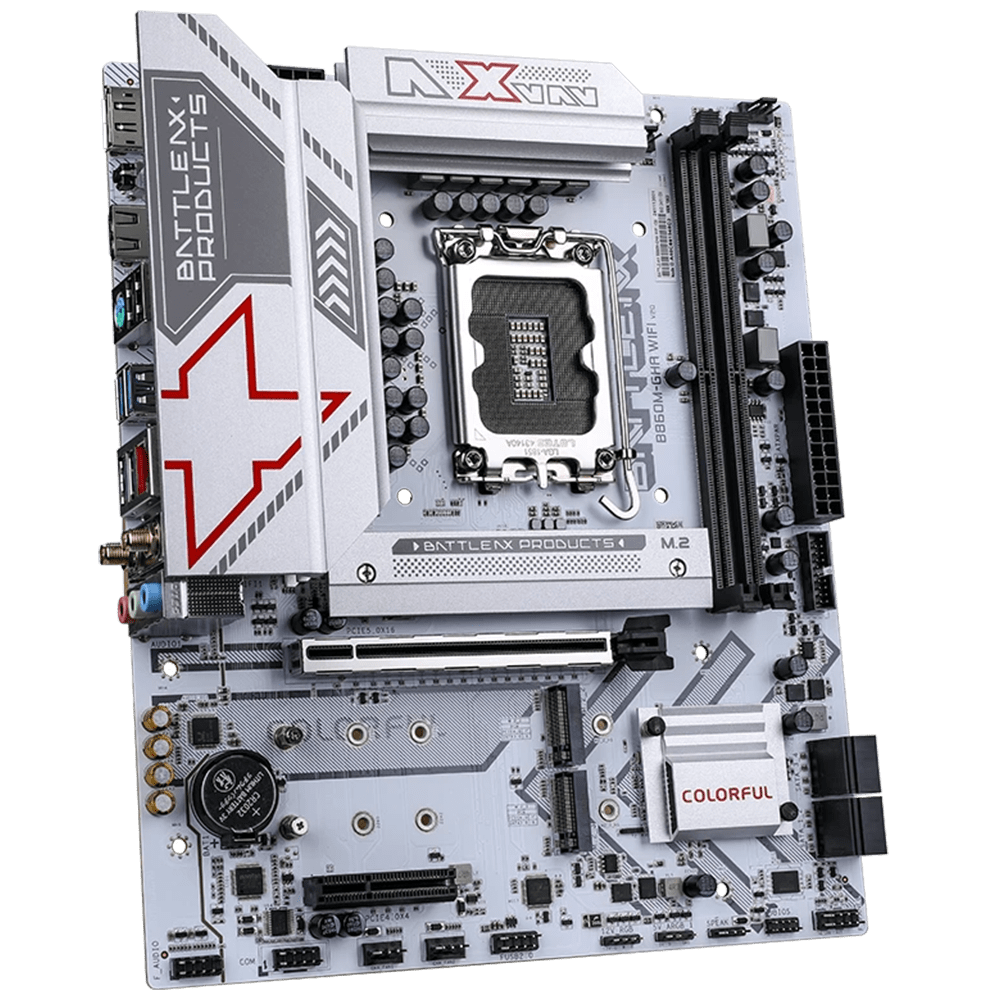

The Colorful BATTLE-AX B860M-GHA WiFi6 V20 White is a versatile Micro-ATX motherboard designed for the Intel® LGA1851 socket, supporting the latest Intel® Core™ Ultra Processors (Series 2). It features a robust 10+1+1 Phase Reinforced Power Design with 60A Dr.MOS to ensure exceptionally stable power delivery for both gaming and professional AI-accelerated workloads. Equipped with DDR5 memory support (up to 7600+ MHz OC) and PCIe 5.0 x16, it also includes dual PCIe 4.0 M.2 slots for rapid storage. With integrated WiFi 6, 2.5G LAN, and a professional white-and-silver aesthetic, it serves as a durable, high-speed foundation for modern enthusiast builds.
Key Specifications at a Glance
| Feature | Specification |
| Socket / Chipset | Intel® LGA1851 / B860 |
| Power Phase Design | 10+1+1 Phase (60A Dr.MOS) |
| RAM Support | 2x DDR5 DIMM (Up to 7600+ MHz OC, Max 96GB) |
| Expansion Slots | 1x PCIe 5.0 x16, 2x PCIe 4.0 x4 |
| Storage | 2x M.2 Gen4 x4, 4x SATA 6G |
| Connectivity | WiFi 6, Bluetooth 5.2, 2.5G Ethernet |
| Rear USB | 4x USB 3.2 Gen1 Type-C 5Gbps, 2x Gen 2 Type-A |
| Video Output | 1x HDMI 2.0, 1x DisplayPort 1.4 |
| Audio | 3-channel High Definition Audio |
